CDTire/NVH

CDTire/NVH linearizes a CDTire/3D model instance around a stationary state — and this linearization includes the rotational effects if non-zero velocity is specified. The stationary state is to be specified by the user, and typically can be the result of a full vehicle non-linear transient simulation with CDTire/3D. The linearized state can be evaluated directly in predefined EVP (Eigenvalue problem) scenarios.

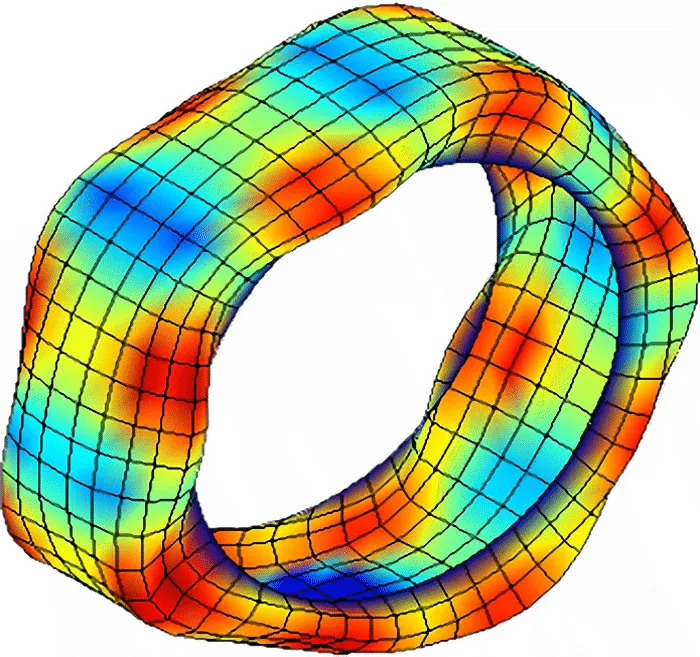

CDTire/NVH: Mode shape visualization
CDTire/NVH: Mode shape visualization

Features

Software toolbox to derive a linear model from CDTire/3D for a rolling preloaded tire

Linear tire model can be used for modal analysis and imported into NVH tools

Discrete local contact area excitation or alternatively global poster excitation
Export to dedicated tire module for MSC Nastran and Altair NVHD
Alternatively, export of transfer functions for direct usage in NVH tools
Coupling to FEA solver
